Description

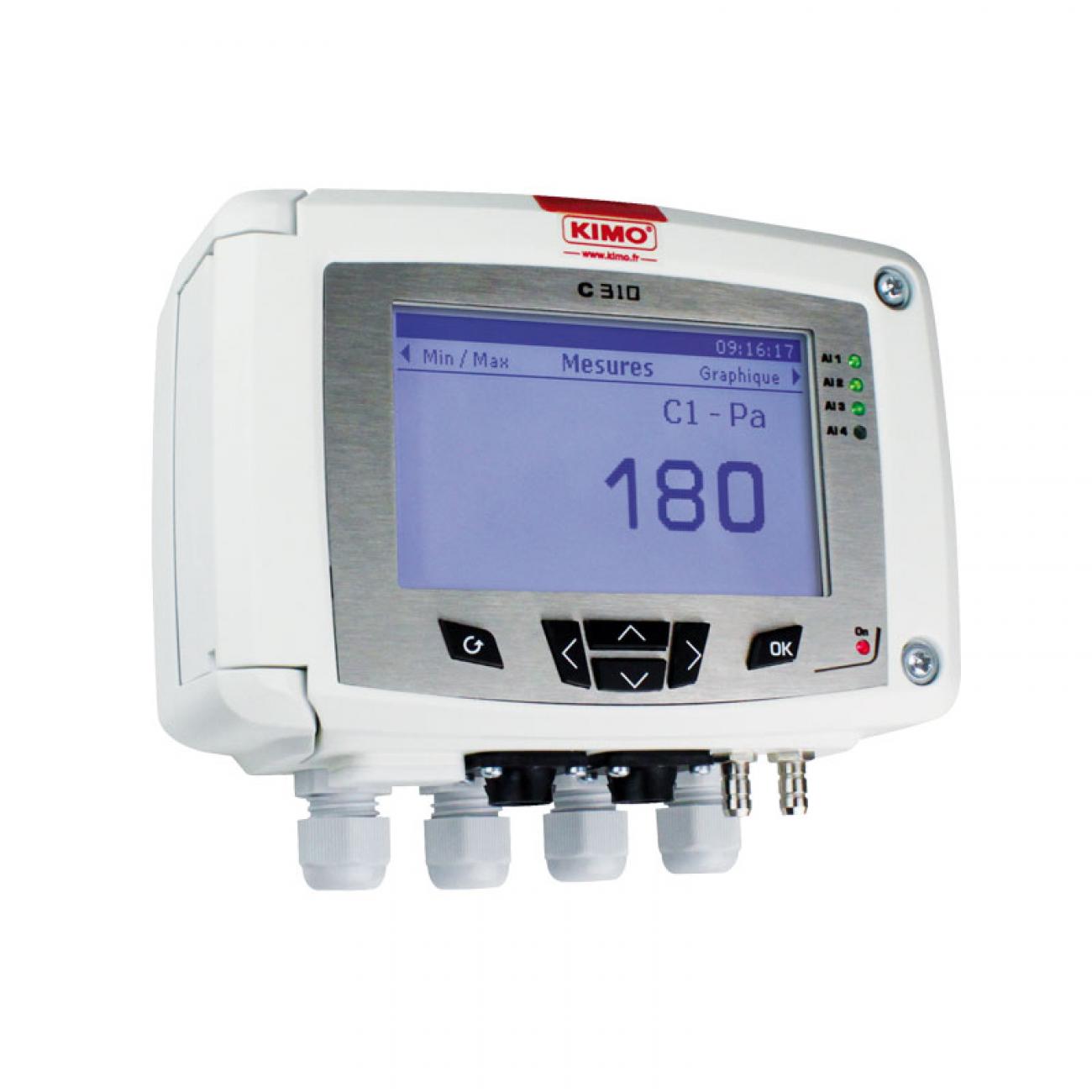

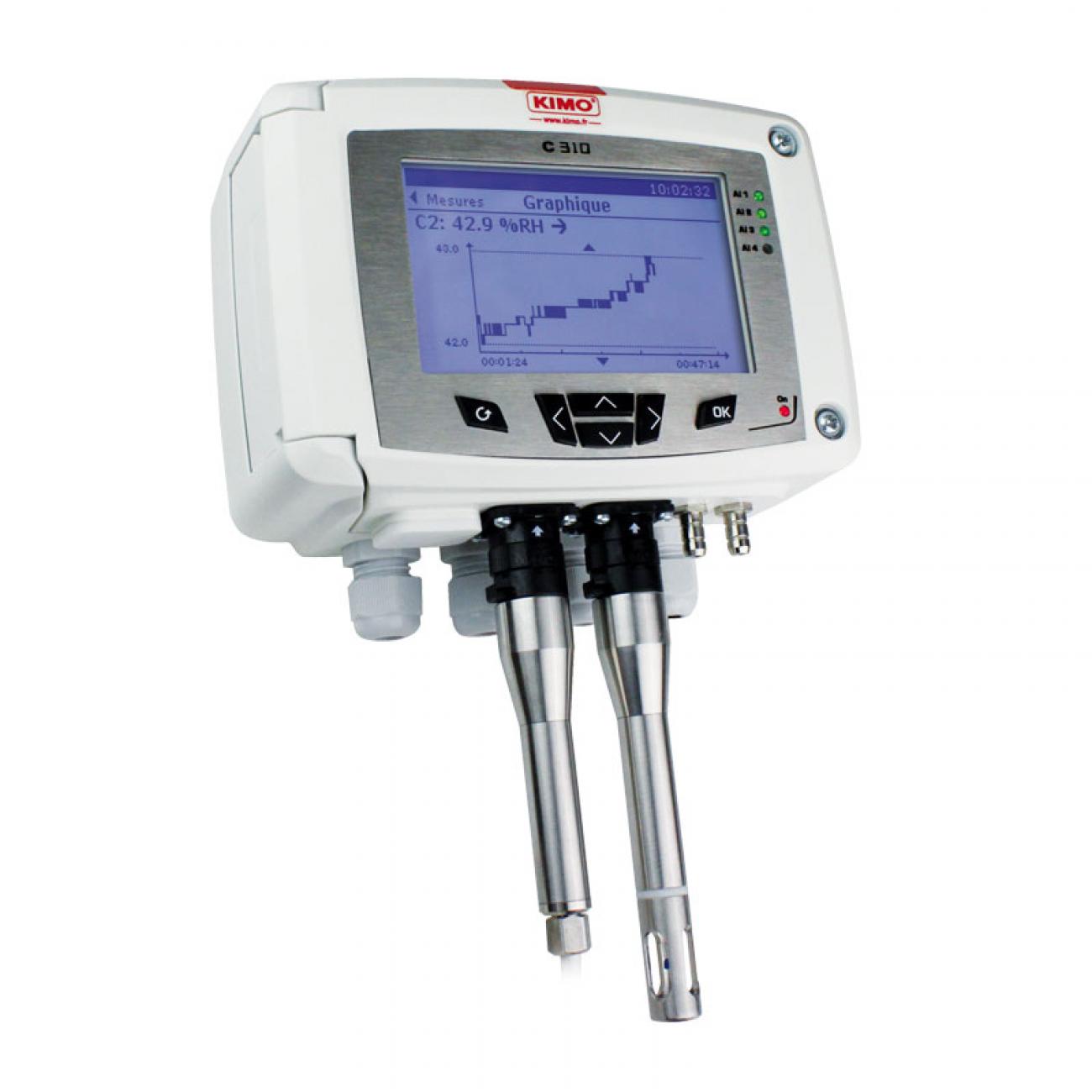

Multifunction sensor
- 2 analog outputs in standard (0-5 V / 0-10 V or 0-20 mA / 4-20 mA), 4-wire technology.
- 24 Vac/Vdc or 100-230 Vac power supply.
- With or without backlit graphic display.
- 2 inputs for Smart probes, and one internal slot for SPI 2 board.
- IP65 ABS V0 housing with stainless steel front.
- Supplied with adjustment certificate.
MEASURE DETAILS
- Units: °C, % RH, Pa, ppm, m/s, hPa, m³/h
- Alarm: 4 visual (dual-color LEDs) and audible alarms
TECHNICAL DETAILS
- Parameters
Air velocity
Airflow
Atmospheric pressure
CO
CO2
Differential pressure
Humidity
Temperature
- Displays: 4-line display
- IP Protection: IP 65
- Standards2011/65/EU RoHS II2012/19/EU WEEE2014/30/EU EMC2014/35/EU Low Voltage
- Power supply: 24 Vac/Vdc or 115-230 Vac (Active)
- Outputs: 2 x 0/4-20 mA or 2 x 0-5/10 V (4 wires)
- Relay: Four RCR relays (option)
- Ethernet communication: Yes (optionnal)
- ModBus network: Yes (optionnal)
Options:
- All interchangeable probes and all compatible SPI-2 boards,
- Calculation of the air velocity and airflow (SQR-3),
- High resolution for low pressure module and Thermocouple K for SPI-2 pressure boards.
- 4-relay module.
- 2 additional analog outptuts, RS485 modbus output, Ethernet module,
- LCC-S configuration software and calibration software.
