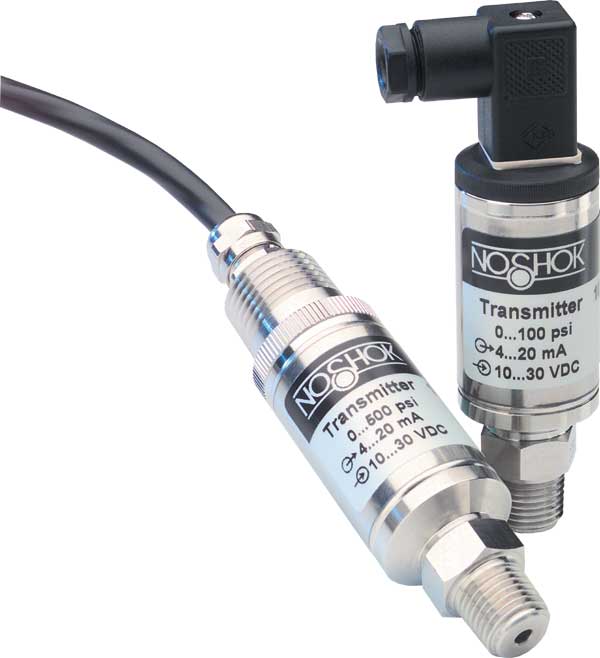

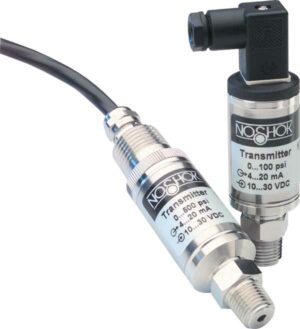

Description
- Plages de vide et de composé allant de 0 psig à 15 000 psig
- Sortie courant
- Pièces en contact avec le fluide en acier inoxydable 316 et 17-4PH
- Conforme CE pour supprimer les RFI, EMI et ESD
| SPÉCIFICATIONS | |
| Output signal | 4 mA to 20 mA, 2-wire |
| Pressure ranges | Vacuum through 0 psig to 15,000 psig Absolute from 0 psia to 15 psia through 0 psia to 300 psia |
| Accuracy | ±0.5% full scale (BFSL); optional ±0.25% full scale (BFSL); (Includes the effects of non-linearity, hysteresis, non-repeatability, zero point and full scale errors) |
| Stability | ≤ ±0.2% full scale for 1 year, non-accumulating |
| Adjustment | ≤ ±10% full scale for zero and span |
| Response time | ≤ 1 ms (between 10% and 90% full scale) |
| Pressure cycle limit | 150 Hz |
| Service life | > 100,000,000 load cycles |
| Temperature ranges | Compensated 32 °F to 176 °F (0 °C to 80 °C) Effect ±0.017% full scale/ °F for zero and span Media -22 °F to 212 °F (-30 °C to 100 °C) Ambient -40 °F to 185 °F (-40 °C to 85 °C) Storage -40 °F to 212 °F (-40 °C to 100 °C) |
| Power requirement* | 10 Vdc to 30 Vdc (4 mA to 20 mA, 2-wire) |
| Load limitations | ≤ (Vpower supply -10)/.020 Amp |
| Proof pressure | 3 times full scale for ranges 0 psi to 5 psi through 0 psi to 200 psi 1.75 times full scale for ranges 0 psi to 300 psi through 0 psi to 10,000 psi 1.5 times full scale for 0 to 15,000 psi |
| Burst pressure | 3.8 times full scale for ranges 0 psi to 5 psi through 0 psi to 200 psi 4 times full scale for ranges 0 psi to 300 psi through 0 psi to 10,000 psi 3 times full scale for 0 psi to 15,000 psi |
| Measuring element | 316 stainless steel for vacuum through 300 psi; 17-4PH stainless steel for ≥500 psi |
| Connection | 316 stainless steel |
| Housing material | 316 stainless steel |
| Environmental rating | IP65 |
| Electromagnetic rating | CE compliant to EMC norm EN 61326:2014/A1:1998 RFI, EMI and ESD protection |
| Electrical protection | Reverse polarity, over-voltage and short circuit protection |
| Shock | 1000 g’s according to IEC 60068-2-27 |
| Vibration | 20 g’s according to IEC 60068-2-6 |
| Weight | Approximately 3.5 oz. |
