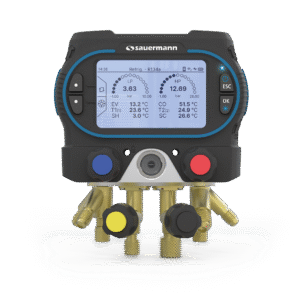

4-way manifold

Logo Sauermann

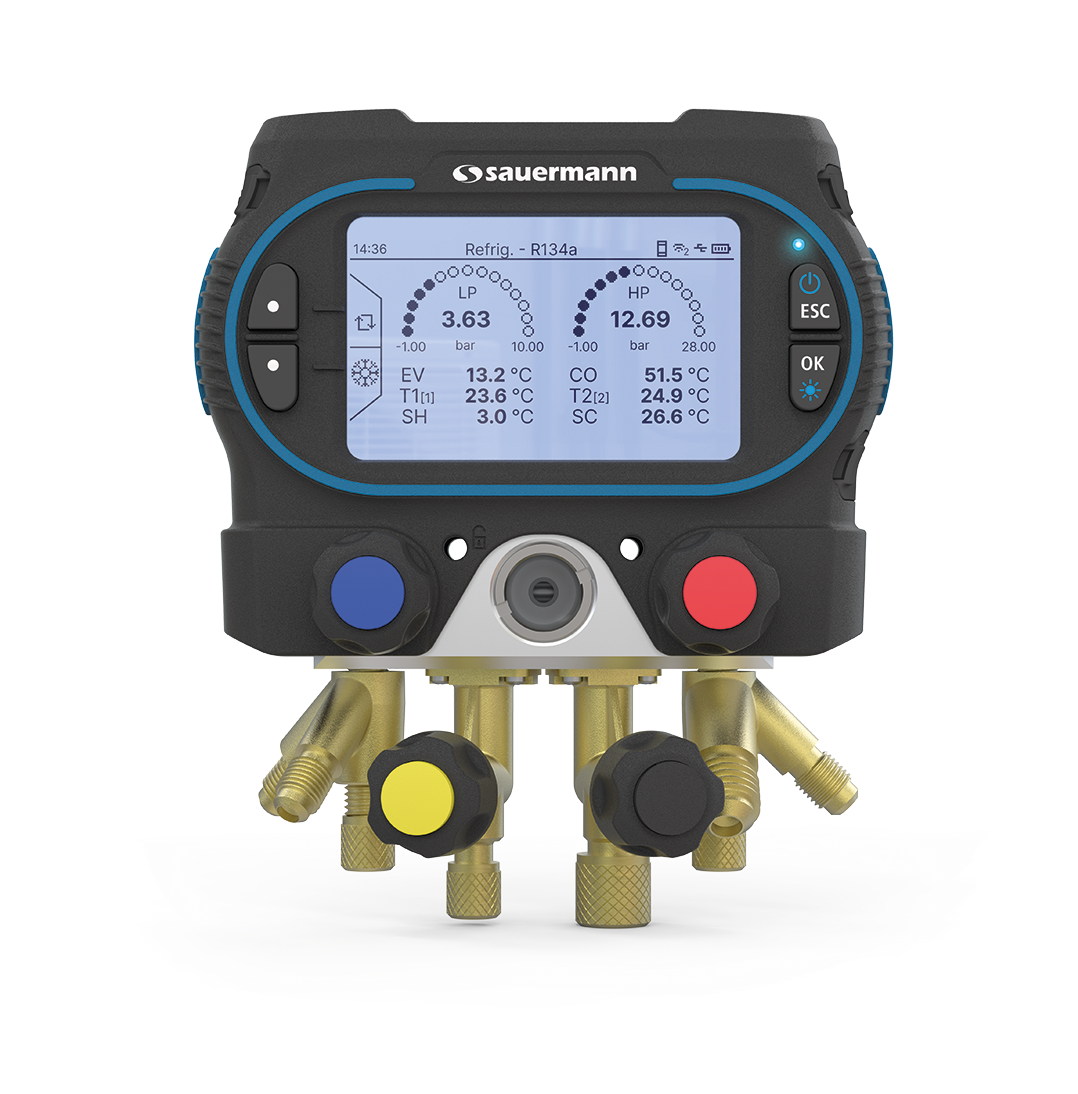

Si-RM450

Refrigerant Handling, Maintenance, and Commissioning

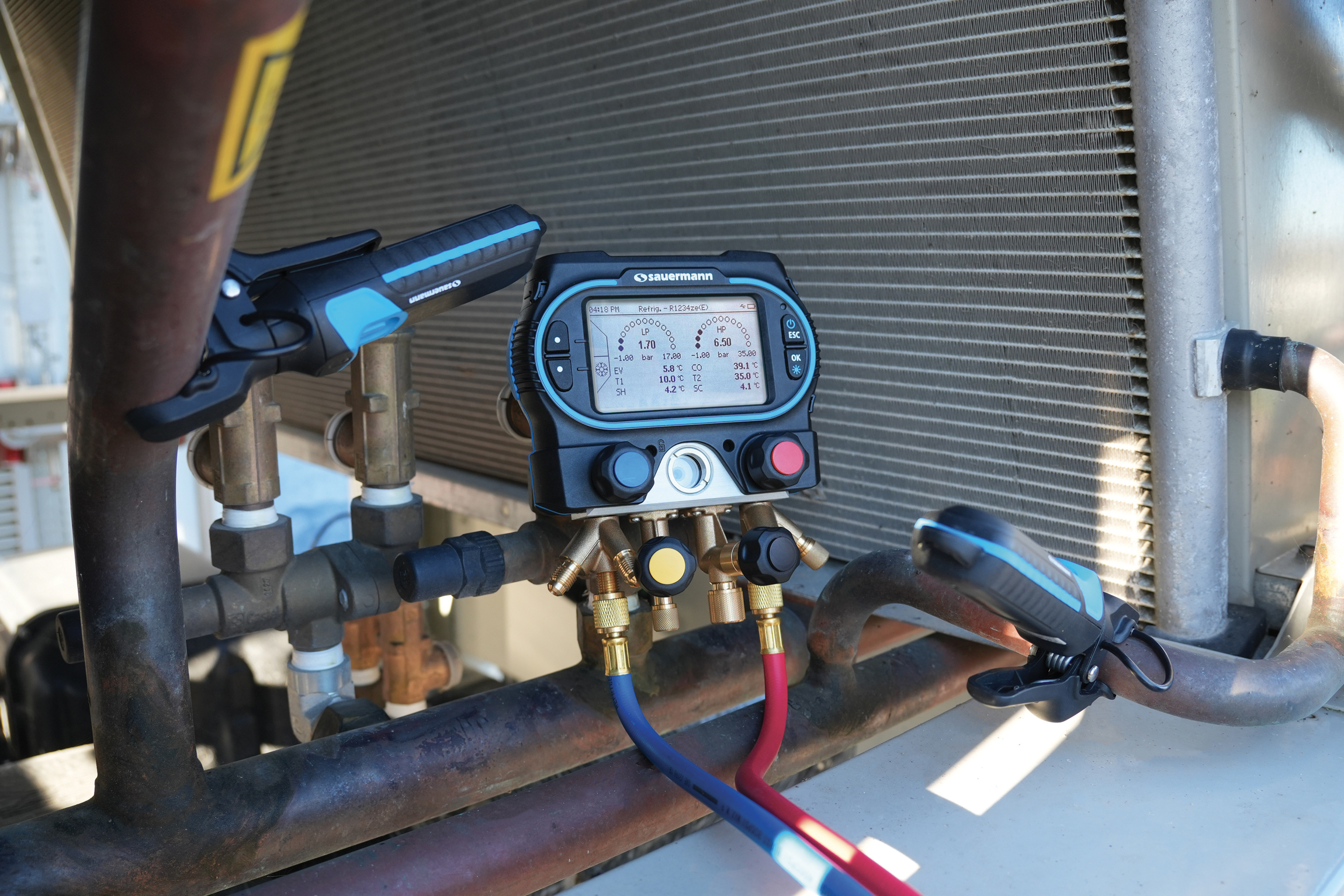

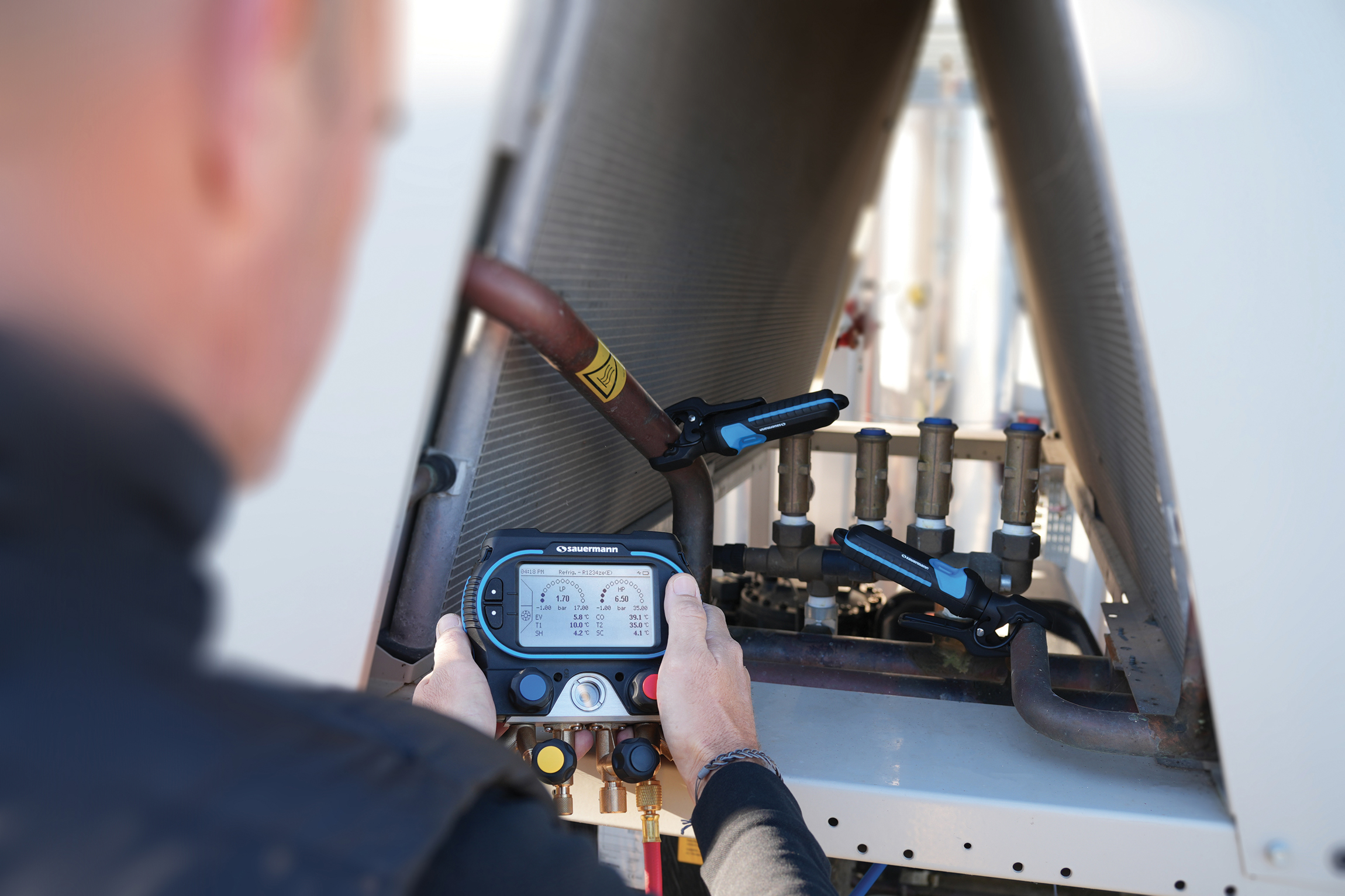

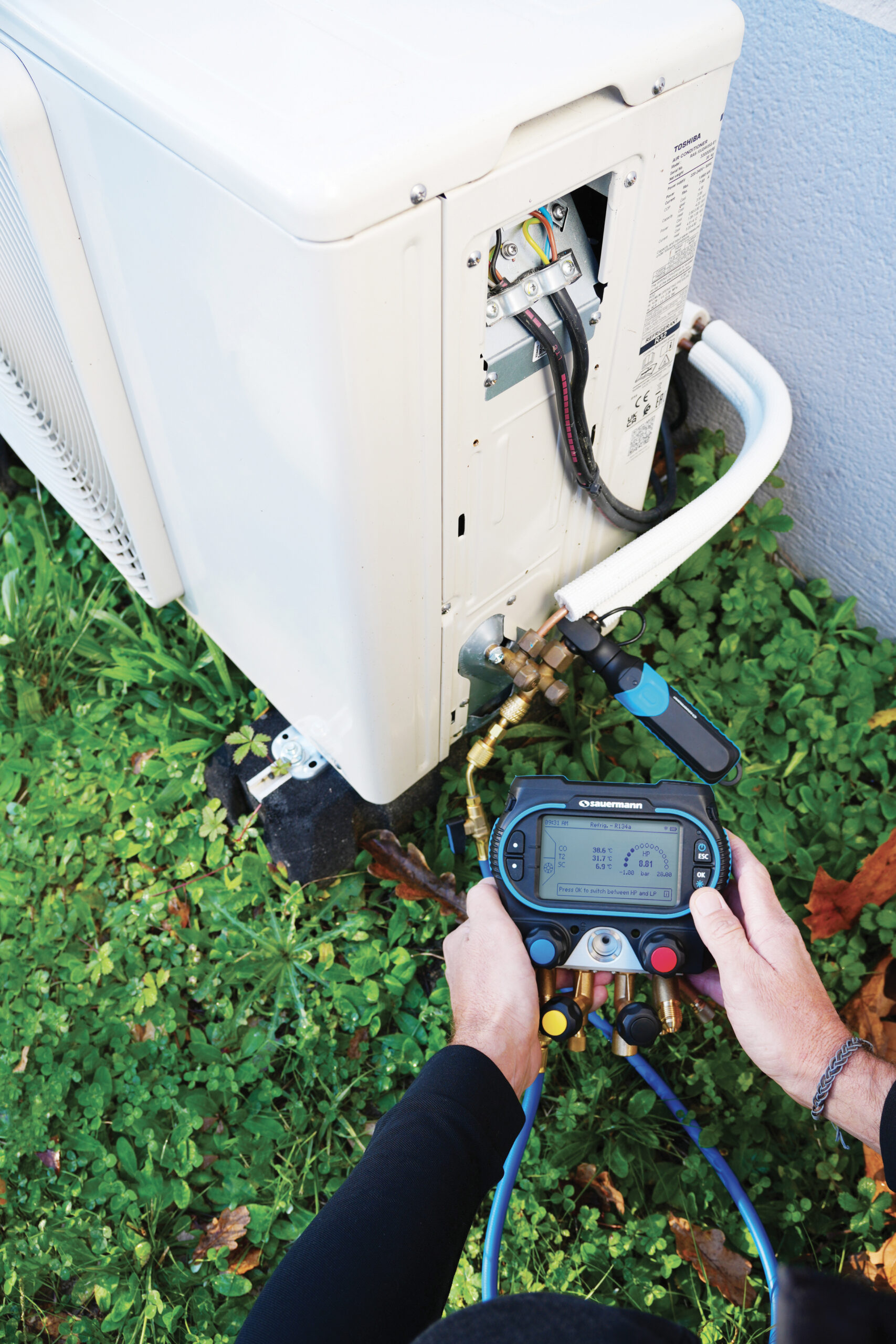

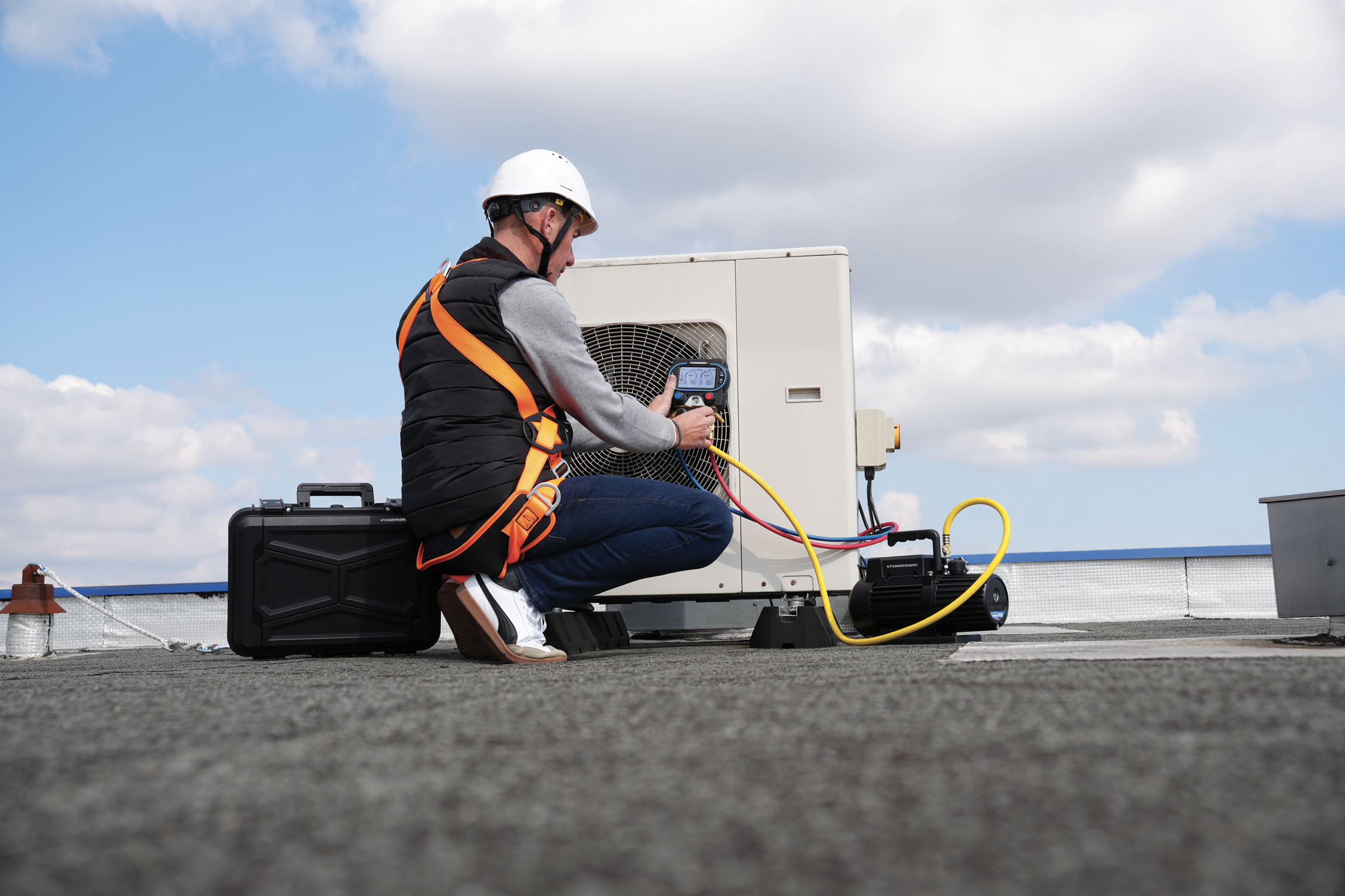

These manifolds are used for commissioning and maintaining all types of refrigerant-based systems: heat pumps, air conditioning, refrigeration, and reversible systems, from domestic systems to complex industrial machines.

Version

  • 4-way manifold - Si-RM450-KIT1

    1x Si-RM450 4-way manifold (4 ports). 2x Si-RT2 wired clamp-on NTC temperature probes for pipes with a diameter of 6 to 42 mm with 2 m cable. Mounting hook, USB-C power connector. Wireless connection to the Sauermann mobile app, the Si-RS1 load scale and wireless probes. Supplied in a hard plastic case with batteries (4xAA) and adjustment certificate.

  • 4-way manifold - SI-RM450-KIT2

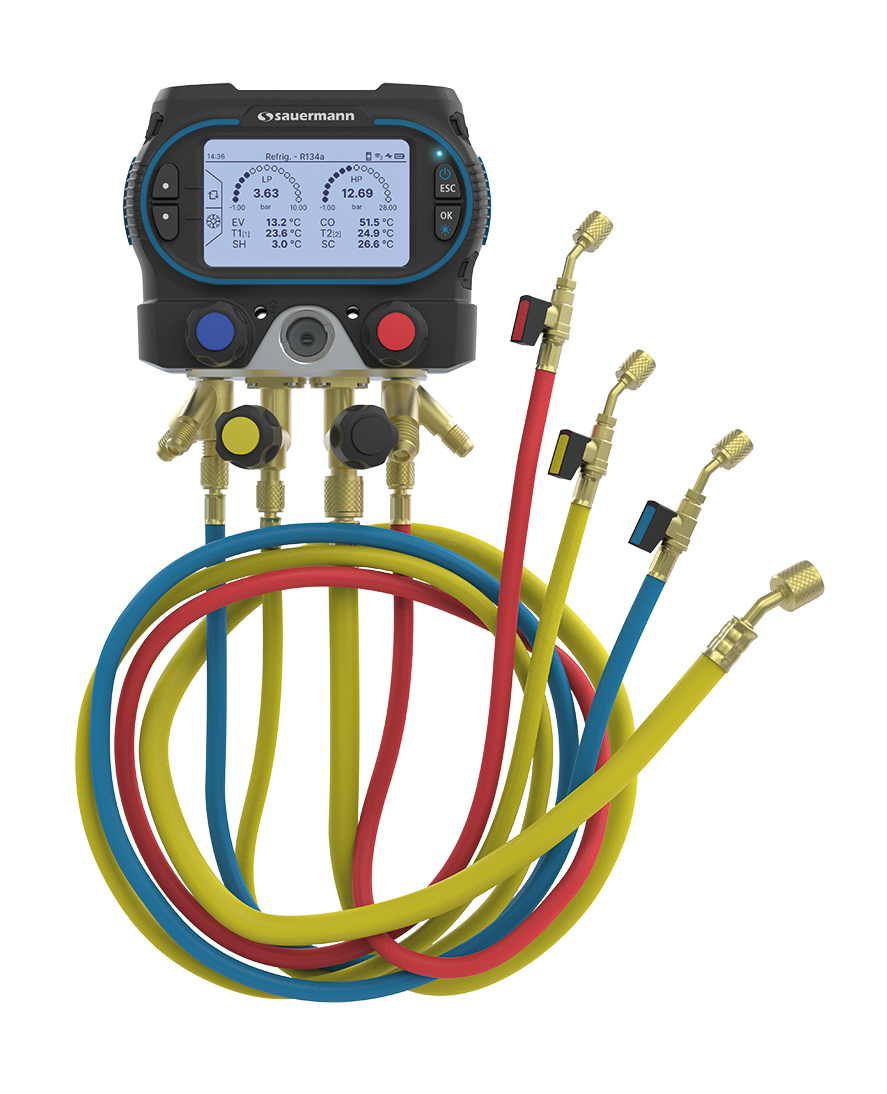

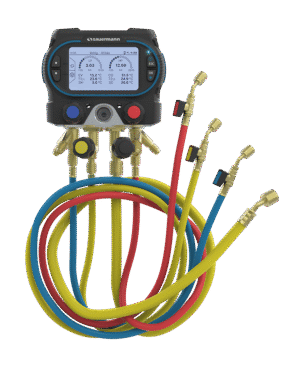

    1x Si-RM450 4-way manifold (4 ports). 2x Si-RT2 wired NTC clamp-on temperature probes for pipes with a diameter of 6 to 42 mm with 2 m cable. 1x set of 3 charging hoses, 1/4'' SAE, length 1 m, 1x vacuum hose, 1/8'' SAE, length 1.5 m. Mounting hook, USB-C power connector. Wireless connection to the Sauermann mobile app, the Si-RS1 load scale and wireless probes. Supplied in a hard plastic case with batteries (4xAA) and adjustment certificate.

  • 4-way manifold - SI-RM450-KIT3

    1x Si-RM450 4-way manifold (4 ports). 2x Si-RT7 wireless clamp-on NTC temperature probes for pipes with a diameter of 6 to 42 mm. Mounting hook, USB-C power connector. Wireless connection to the Sauermann mobile app, the Si-RS1 load scale and wireless probes. Supplied in a hard plastic case with batteries (4xAA) and adjustment certificate.

  • 4-way manifold - SI-RM450-KIT4

    1x Si-RM450 4-way manifold (4 ports). 2x Si-RT7 wireless clamp-on NTC temperature probes for pipes with a diameter of 6 to 42 mm. 1x set of 3 charging hoses, 1/4'' SAE, length 1 m, 1x vacuum hose, 1/8'' SAE, length 1.5 m. Mounting hook, USB-C power connector. Wireless connection to the Sauermann mobile app, the Si-RS1 load scale and wireless probes. Supplied in a hard plastic case with batteries (4xAA) and adjustment certificate.

  • 4-way manifold - SI-RM450-KIT5

    1x Si-RM450 4-way manifold (4 ports), 2x Si-RT7 wireless clamp-on NTC temperature probes for pipes with a diameter of 6 to 42 mm. 1x Si-RV4 wireless vacuum probe. Mounting hook, USB-C power connector. Wireless connection to the Sauermann mobile app, the Si-RS1 load scale and wireless probes. Supplied in a hard plastic case with batteries (4xAA) and adjustment certificate.

  • 4-way manifold - SI-RM450-KIT6

    1x Si-RM450 4-way manifold (4 ports). 2x Si-RT7 wireless clamp-on NTC temperature probes for pipes with a diameter of 6 to 42 mm. 1x Si-RV4 wireless vacuum probe. 1x set of 3 charging hoses, 1/4'' SAE, length 1 m, 1x vacuum hose, 1/8'' SAE, length 1.5 m. Mounting hook, USB-C power connector. Wireless connection to the Sauermann mobile app, the Si-RS1 charging scale and wireless probes. Supplied in a hard plastic case with batteries (4xAA) and adjustment certificate.

Description

Very easy to use, this tool incorporates the latest technologies for rapid and comprehensive system diagnostics. Its intelligent digital assistance supports the operator in every situation to help them optimally achieve their objectives.

Compatible with A1 / A2L / A2 / A3 refrigerants

Compatible with certain B1 refrigerants; see the refrigerant list for details on compatible refrigerants. The device must not be used with ammonia refrigerants (NH3 / R717).

  • Suitable for A1 / A2L / A2 / A3 refrigerants
  • Robust anti-glare display
  • Safe and durable for extended operation
  • Highly responsive NTC temperature sensors
  • Simplified troubleshooting and diagnostics
  • New support app: Sauermann Pilot

Supplied with:

  • Several kits available: for more information, refer to the technical data sheet
  • 1 Individual adjustment certificate
  • Supplied in a hard plastic case

Gas database refrigerants

  • R11, R113, R114, R115, R1150, R116, R12, R123, R124, R125, R1270, R13, R134a, R13b1, R14, R141b, R142b, R143a, R152a, R161, R170, R218, R22, R227, R23, R236ea, R236fa, R245ca, R245fa, R290, R32, R600, R600a, R601, R601a, R718, R744, R744a, R50, R41, R1233zd(E), R1234yf, R1234zeE, R1234zeZ, R401A, R401B, R401C, R402A, R402B, R403A, R403B, R404A, R405A, R406A, R407A, R407B, R407C, R407D, R407E, R407F, R407H, R408A, R409A, R409B, R410A, R410B, R411A, R411B, R412A, R413A, R414A, R414B, R416A, R417A, R417B, R417C, R418A, R419A, R419B, R420A, R421A, R421B, R422A, R422B, R422C, R422D, R422E, R423A, R424A, R425A, R426A, R427A, R428A, R434A, R437A, R438A, R439A, R440A, R441A, R442A, R443A, R444A, R444B, R445A, R446A, R447A, R448A, R449A, R450A, R452A, R452B, R453A, R454A, R454B, R454C, R455A, R456A, R458A, R466A, R469A, R500, R501, R502, R503, R504, R507A, R508A, R508B, R509A, R511A, R513A

Video



Additional information

Version

Si-RM450-KIT1, SI-RM450-KIT2, SI-RM450-KIT3, SI-RM450-KIT4, SI-RM450-KIT5, SI-RM450-KIT6
