Digitral Protractor

950 Series

The Mitutoyo Pro Series of digital protractors displays tilt values ​​on an easy-to-read digital LCD display.

Modele

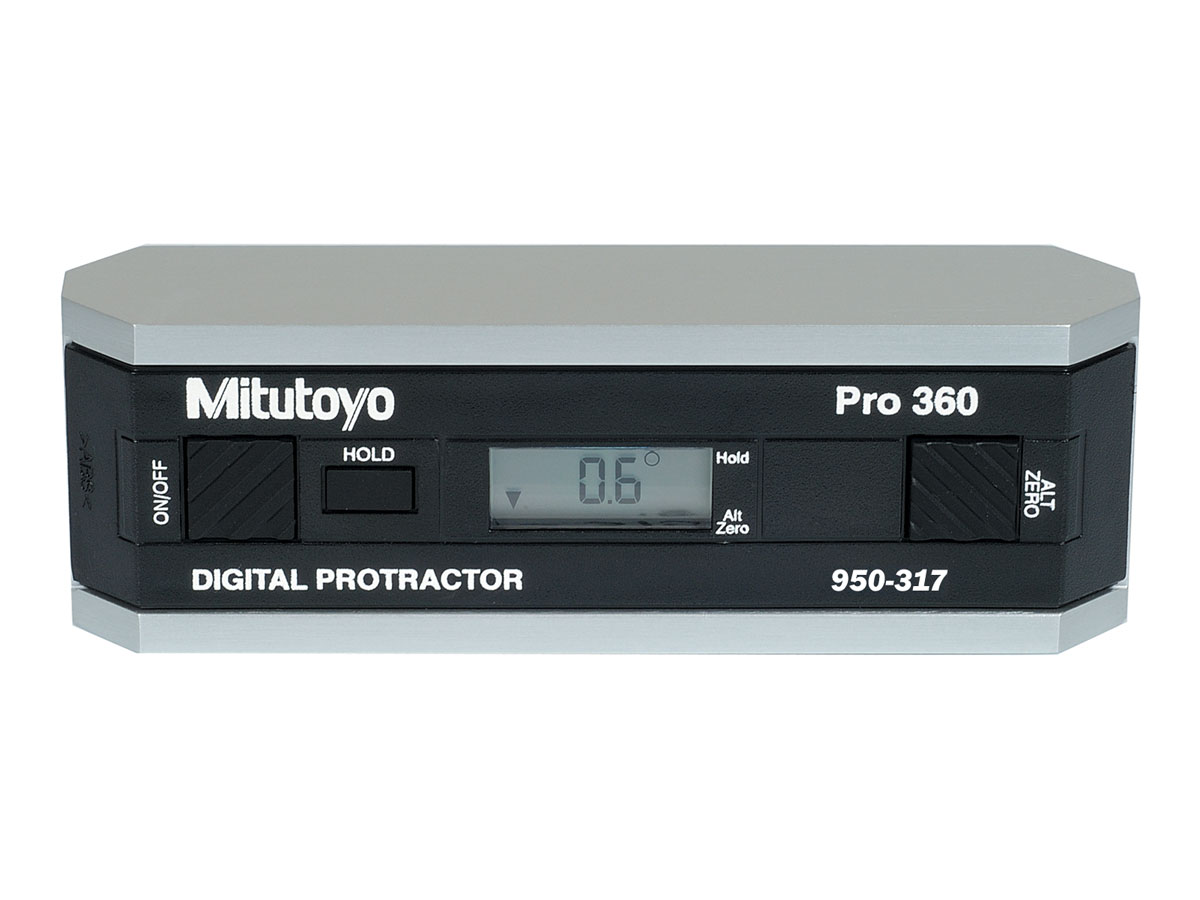

  • Digitral Protractor - 950-317

    Pro 360 Model; Resolution: .01°; Accuracy: ±.1° Level ±10°, Plumb ±10° ±.2° Maximum Error; Repeatability: ±.1°

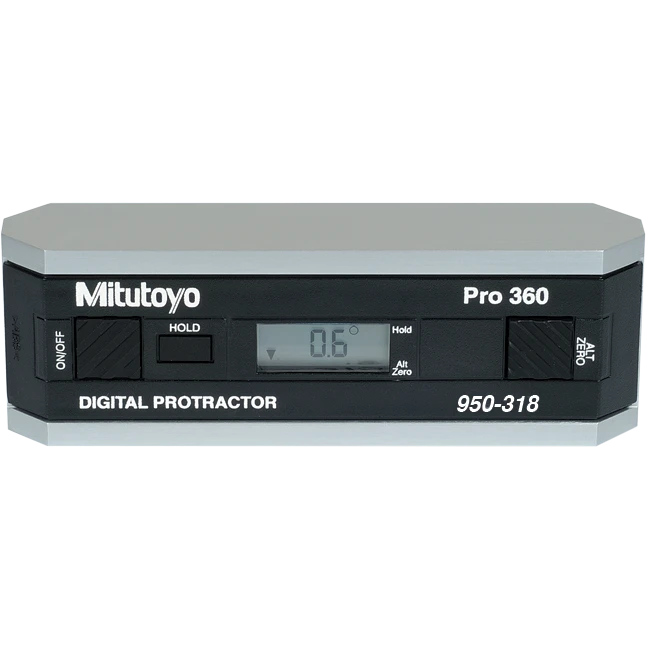

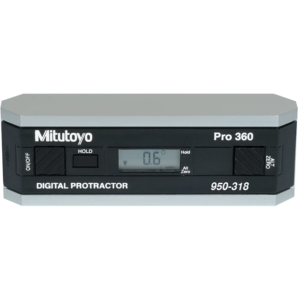

  • Digitral Protractor - 950-318

    Model Pro 3600; Resolution: 0.01° (0° to 9.99°) 0.1° (10° to 90°); Accuracy: ±0.05° (0° to 10°) ±0.1° (80° to 90°) ±0.2° (10° to 80°): Repeatability: ±0.05°

Description

The Mitutoyo Pro 360 and 3600 digital protractors use an electronic gravity sensor, powered by the latest low-power electronic circuit technology, to perform tilt measurements on flat surfaces. The Pro digital protractor offers a full 360° measuring range, and the LCD display remains vertical for easy and accurate reading from any angle. The Pro 3600 uses an RS-232 output for digital data management.

  • The Pro 3600 Digital Protractor features an SPC output function for quick and easy real-time data management, with an optional data cable.
  • Calibration is simple and requires no special tools or fixtures.
  • The frame is machined aluminum for increased portability and durability.
  • Powered by a 9V battery for up to 500 hours of battery life.
  • Supplied in a custom-made plastic case.

Additional information

Modèle

950-317, 950-318
