Infrared Thermal Imaging Camera

Logo HIKMICRO

G60

High resolution handheld imaging camera with interchangeable lens

SKU: G60 Categories: , , Tag:

Description

  • IR Resolution: 640 x 480 (307,200 pixels)

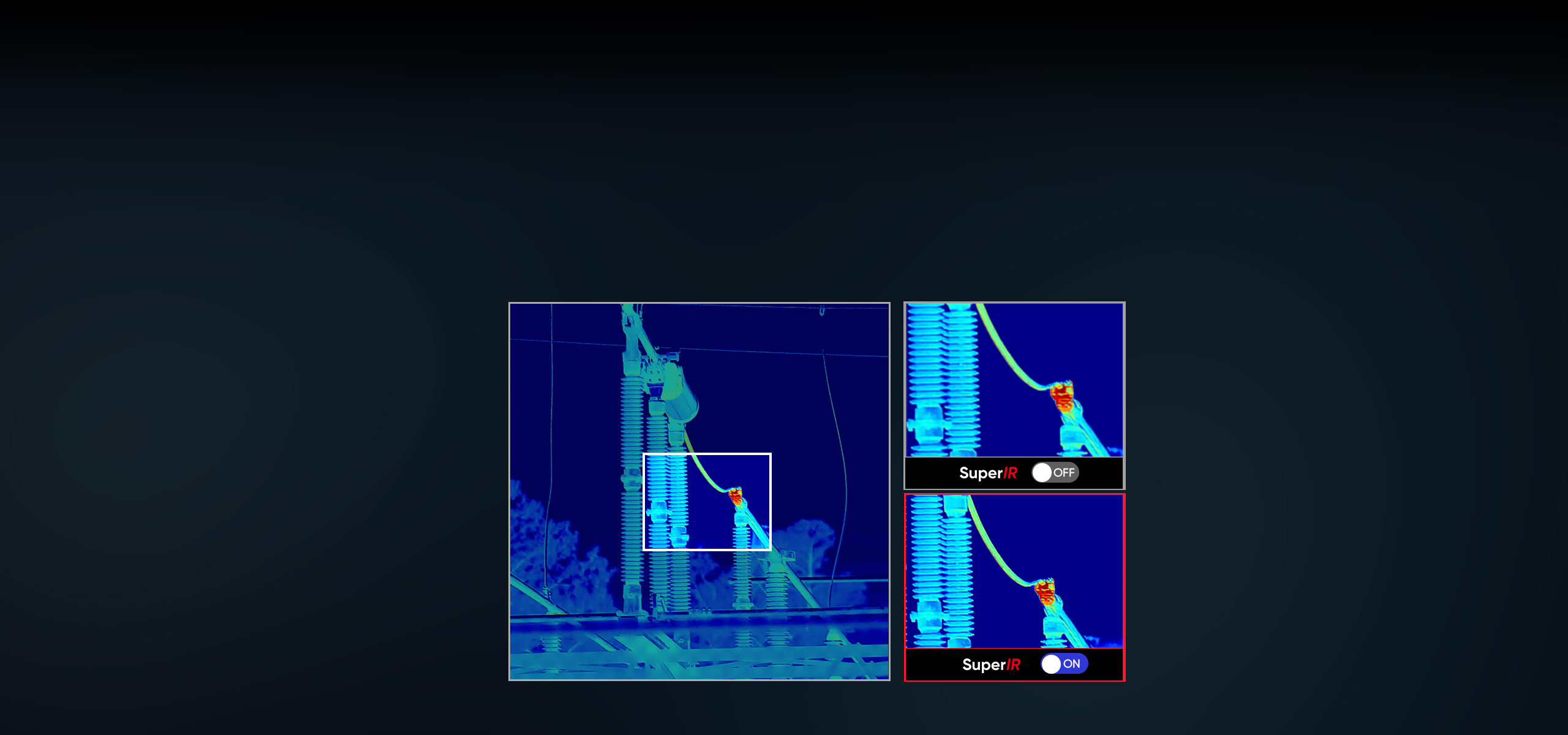

  • SuperIR: 1280 x 960 (1,228,800 pixels)
  • NETD: < 35 mK (@ 25 °C, F#=1.0)
  • Image Frequency: 50 Hz
  • Detector Pitch: 17 μm
  • Spectral Range: 7.5 to 14 μm
  • Focal Length: 25 mm
  • F-number: F 1.0
  • Field of View (FOV): 25° × 19°
  • Spatial Resolution (IFOV): 0.68 mrad

Ultra High Resolution

A highly sensitive VOx detector (NETD < 35 mK) with 640 x 512 (327 680 pixels) IR resolution, provides a distinct thermal vision of the target.

Multiple Image Modes

Thermal, Fusion, PIP and Optical modes to suit your preferred.

Multiple Interchangeable Lens Choices

Interchangeable lenses 0.5X, 2X, 3.3X are available for choices. Different tele converters give different Field Of View, offering more choices when facing different scenarios.

Various Focus Modes

Support 4 types of focus modes to reach more clear images and lead to more accurate temperature measurements.

HIKMICRO Analyzer Software

Included software offers flexible ways (points, lines, rectangles, circles, polygons) to analyze thermographic info of captured pictures, and generate reports.

Auto-Range

A highly sensitive HIKMICRO VOx detector (NETD < 40 mK) provides a distinct thermal vision of the target.

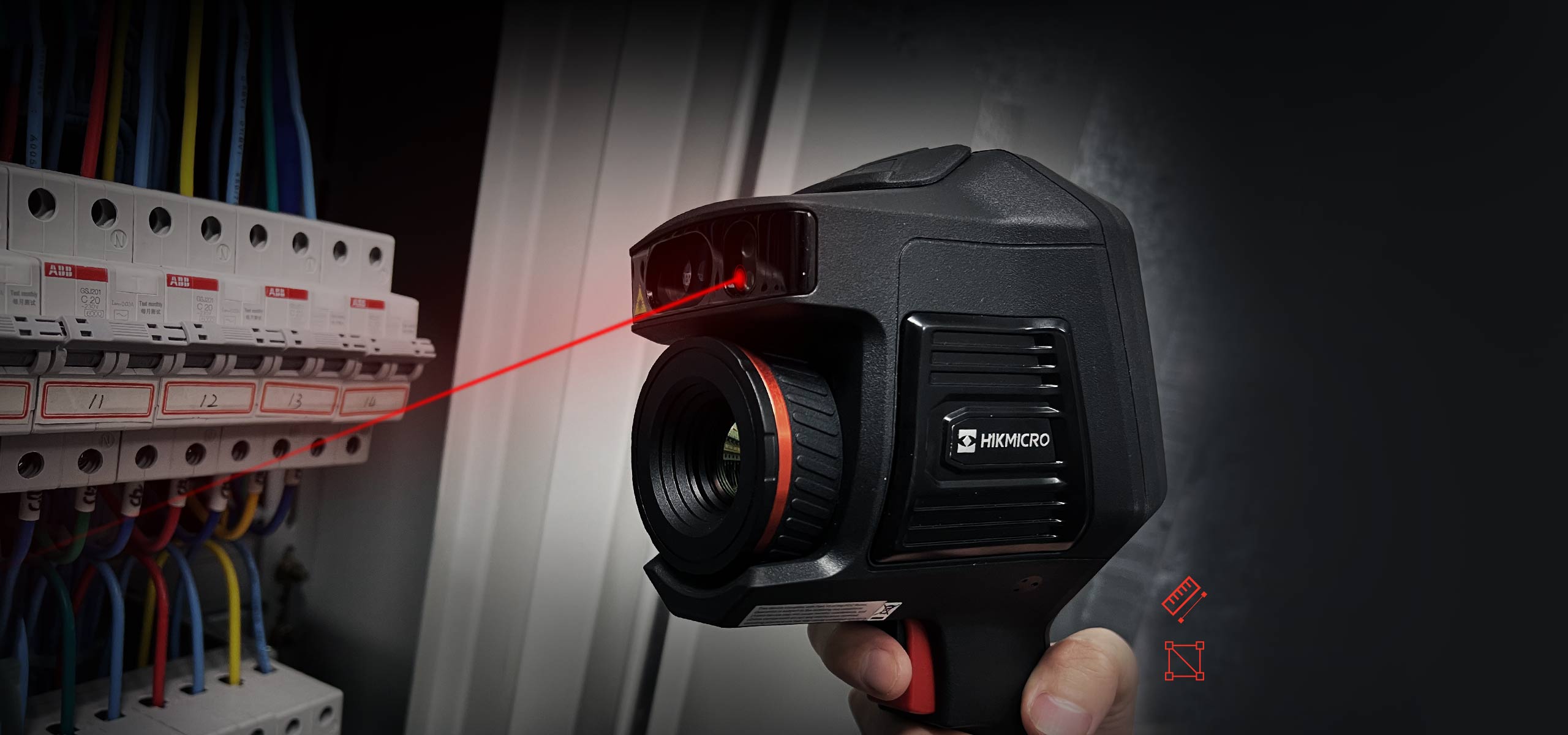

Laser Pointer

The Laser Pointer helps show the position of the center point on actual object.

Wi-Fi Connectivity

Connect to mobile devices via built-in Wi-Fi to quickly share images and videos through HIKMICRO Viewer App.

1-Tap Level & Span

Allows to focus one the area of the image you are interested in by narrowing the span with 1-Tap of the screen.
