Liquid Filled Pressure Gauge

BG6210 SERIES

BASCO General Purpose Pressure Gauges, Glycerine filled, 1.6% F.S. Accuracy, Grade A (2-1-2), 100mm (4″)

SKU: BG6210 Categories: Analog Pressure Gauges, Pressure Tags: Bourdon tube pressure gauges, Liquid Filled Bourdon Tube Pressure Gauges

Datasheet User manual

Modele

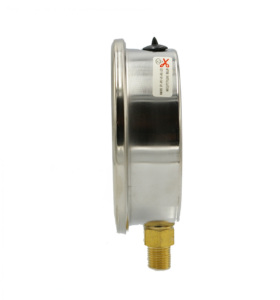

Liquid Filled Pressure Gauge - BG6211
Raccord au bas (LM)

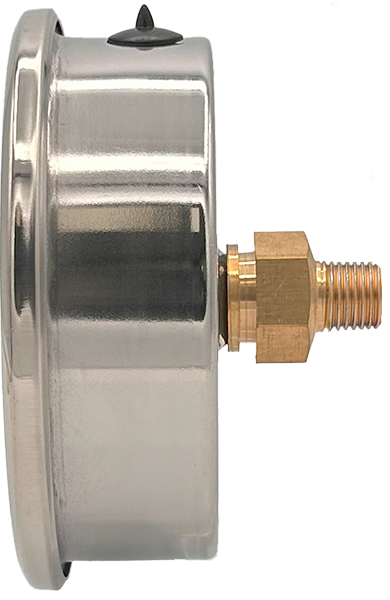

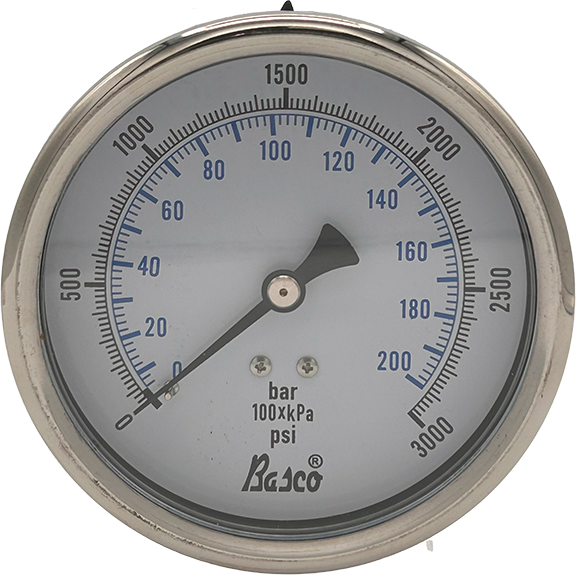

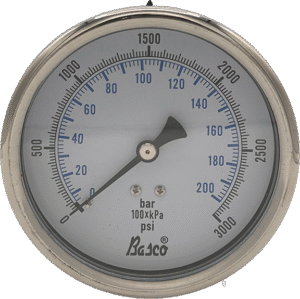

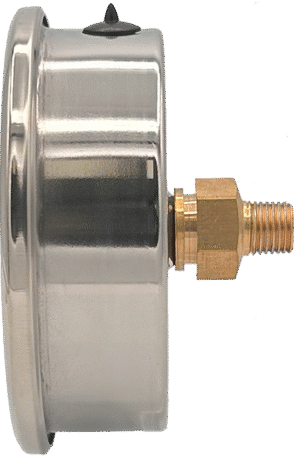

Liquid Filled Pressure Gauge - BG6214
Raccord au centre arrière (CBM)

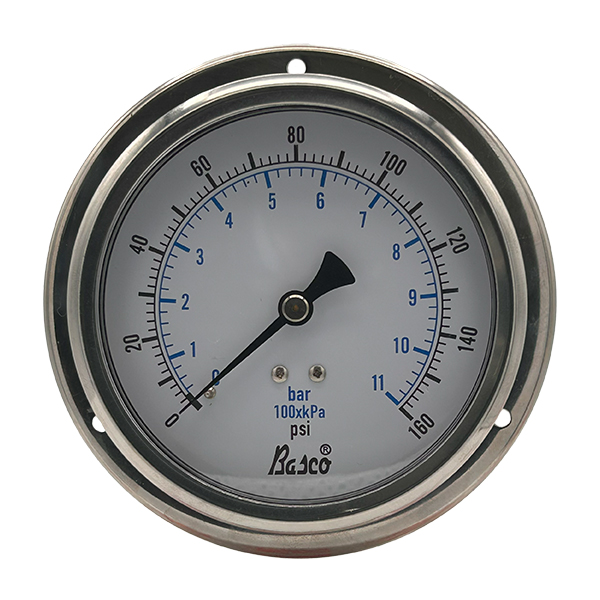

Liquid Filled Pressure Gauge - BG6216

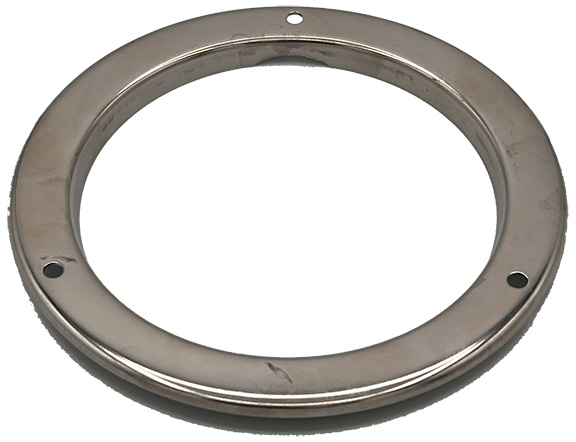

Raccord au centre arrière (CBM) avec bride avant

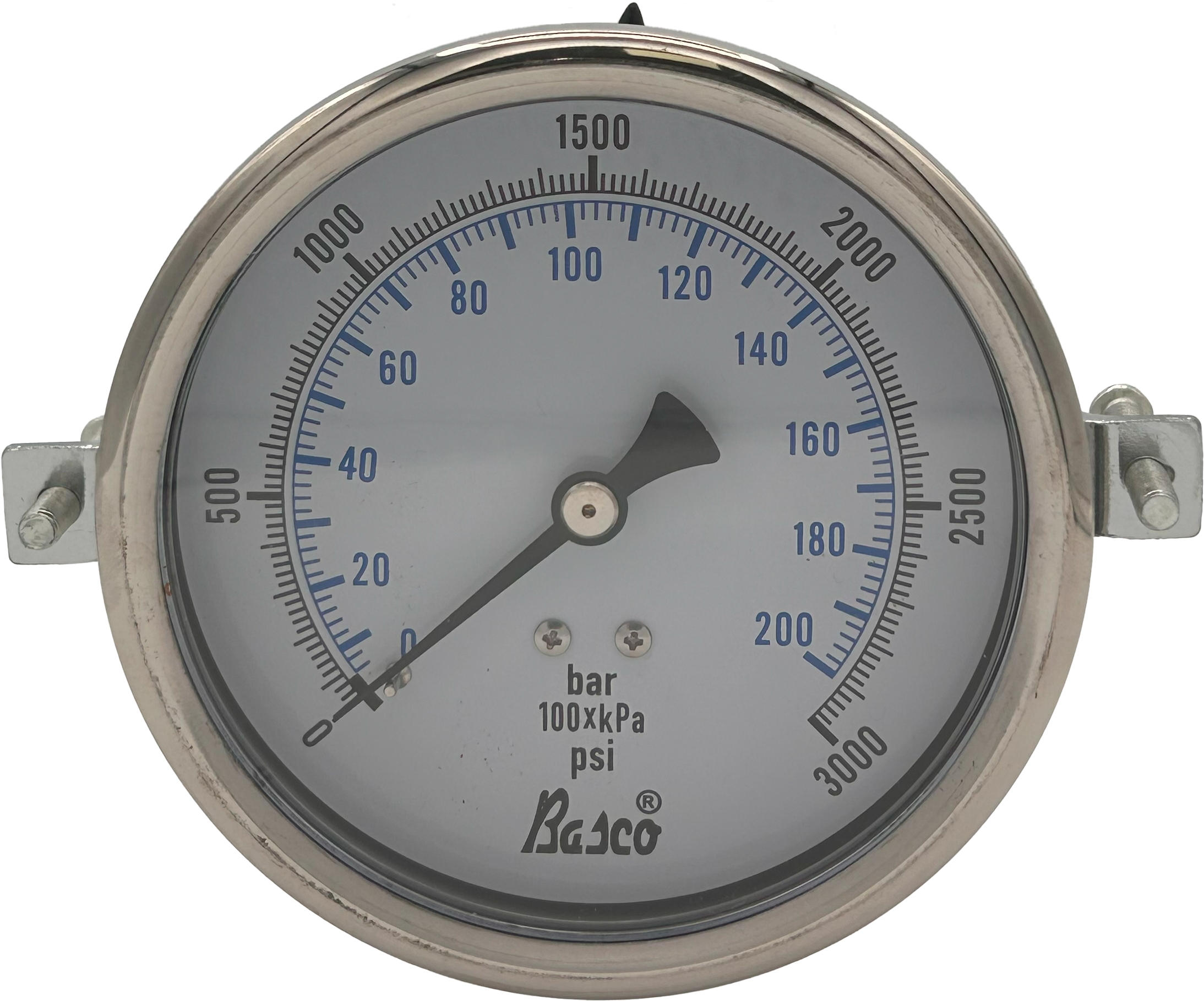

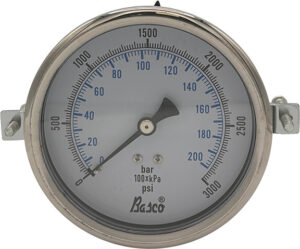

Liquid Filled Pressure Gauge - BG6217U

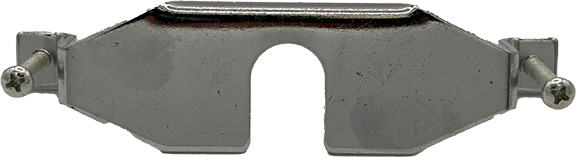

Raccord au centre arrière (CBM) avec bague en U

Description
Additional information

Description

Glycerine, acrylic window
Case: 304 stainless steel
Ring: 304 stainless steel, sealed
Dial: aluminium, white background, graduations in black (psi) and blue (bar)
Range: triple, psi, bar and (100x kPa)
Resolution: ½ division
Bourdon tube: brass (less than 600 psi), bronze (more than 800 psi)
Connection: brass, ¼" NPT
Functional ambient and process temperature: -18 to 60°C, less than 80% RH

Range Code	psi scale	Bar scale
401	-30/0"Hg	-1/0
405	-30"Hg/0/15	-1/0/0
406	-30"Hg/0/30	-1/0/2
407	-30"Hg/0/60	-1/0/4
408	-30"Hg/0/100	-1/0/7
409	-30"Hg/0/150	-1/0/10
411	-30"Hg/0/200	-1/0/14
412	-30"Hg/0/300	-1/0/21
417	0/15	0/1
420	0/30	0/2
423	0/100	0/7
425	0/160	0/11
426	0/200	0/14
427	0/300	0/21
428	0/400	0/28
429	0/500	0/35
430	0/600	0/40
432	0/1000	0/70
433	0/1500	0/100
435	0/2000	0/140
436	0/3000	0/210
437	0/4000	0/280
438	0/5000	0/350
439	0/6000	0/400

Additional information

Modèle	BG6211, BG6214, BG6216, BG6217U
