Description
Temperature control of multiple channels is possible on a single controller.
This type of controller has a display and operation keys, and a multi-loop temperature control system can be easily made and maintainability is also good.
The controller requires less mounting space than installing multiple single loop controllers.
- Measurement accuracy: ±0.3% of displayed value
- Sampling time: 0.5 sec.
- 8ch (MA901) temperature control on one controller
- Abundant functions such as multi-memory area function, contact input/output, communication
- Plug-in construction
Main features
Maximum 8 channel temperature control is possible in a 96mm square size

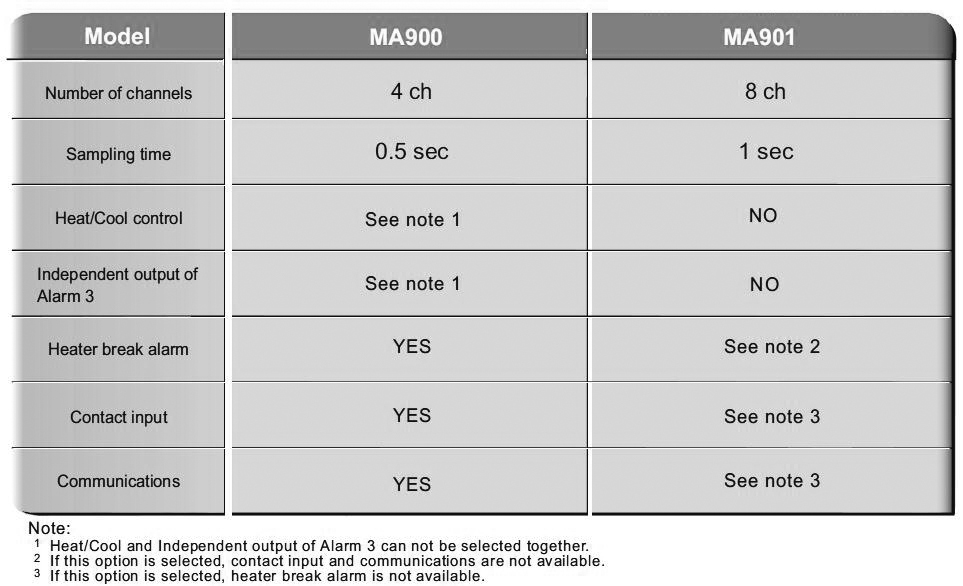

Two types; 4ch or 8ch

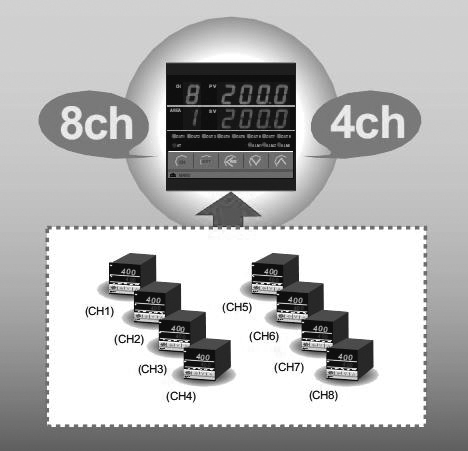

Panel space requirement is reduced

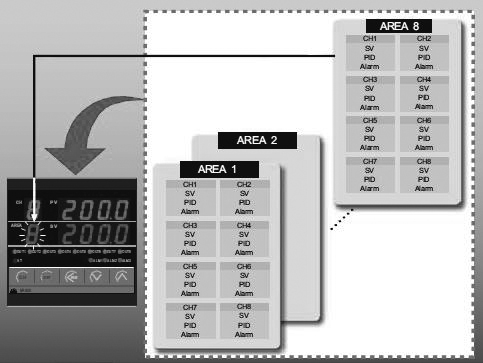

Maximum 8 types of memory areas
Up to 8 types of parameters of each channel can be registered. This contributes to improve efficiency of production lines and products management.
Parameters covered by Memory area:
Temperature setting, various Alarm setting, PID values, Anti-reset windup (ARW), Overlap/Deadband, Setting change rate limiter, Channel use/unuse
Abundant options
Communication function, alarm function, and digital contact inputs are available.
