Description

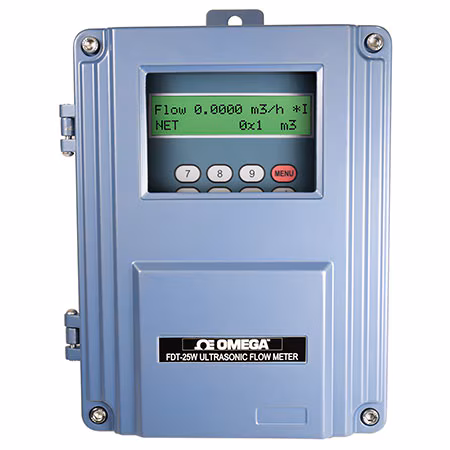

The FDT-25W ultrasonic flow meter is designed to measure liquid velocity in a closed pipe. The clamp-on, non-contact transducers offer the advantages of clogging-free operation and easy installation. The FDT-25W transit-time flow meter uses two transducers that act as both ultrasonic transmitters and receivers. The transducers are mounted outside a closed pipe, a specific distance apart.
Features
- Accuracy 1%
- Repeatability 0.2%
- Positive, negative, and net totalizer
- 2-line LCD display
- Clamp-on transducers
- RS485 output
- 4 to 20 mA output
Comes with
- 2 STD-WS standard clamp transducers for pipes from 19 mm to 10 cm (3/4 in to 4 in)
- 1 hex wrench
- 2 steel hose clamps
- 1 acoustic gel for standard transducers
- Transducers for larger pipes and extended temperature ranges are available at an additional cost.
Accessories
- STD-WS: Standard clamp-on transducer - Small (0 to 90°C) - Pipe size DN15 to DN100 (3/4 to 4 in)
- STD-WM: Standard clamp-on transducer - Medium (0 to 90°C) - Pipe size DN50 to DN700 (2 to 28 in) in.)
- STD-WL: Standard Clamp-on Transducer - Large (0 to 90°C) - Pipe DN300 to DN6000 (12 to 240 in.)
- HT-WS: High Temperature Clamp-on Transducer - Small (0 to 160°C) - Pipe DN15 to DN100 (3/4 to 4 in.)
- HT-WM: High Temperature Clamp-on Transducer - Medium (0 to 160°C) - Pipe DN50 to DN700 (2 to 28 in.)
- HT-WL: High Temperature Clamp-on Transducer - Large (0 to 160°C) DN300~DN6000 (12" to 240")
- Acoustic Gel STDGEL: for standard transducers
- Acoustic Gel HTGEL: for high-temperature transducers
- CLAMP1: Clamp (up to DN300/12")
- CLAMP2: Clamp (up to DN700/28")
- CLAMP3: Clamp (up to DN1000/40")
- TRANSDUCER CABLE TCH: PAIR OF RED AND BLUE - 5 M
