Multifunction anemometer

Logo Sauermann

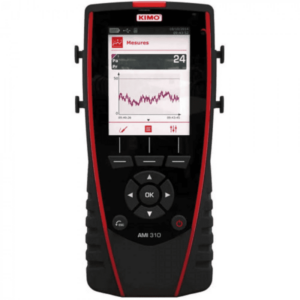

AMI 310

Kimo’s AMI 310 measures simultaneous parameters including pressure, temperature (Pt100 and thermocouple), humidity, air quality (CO/CO2), air velocity, airflow (vane probes and hotwire), and tachometry.

SKU: AMI310 Categories: , , , , , , , , , , , , , Tag:
Datasheet User manual

Version

  • Multifunction anemometer - AMI310

    AMI 310 only, with a transport case with a calibration certificate, a charger and a USB cable.

  • Multifunction anemometer - AMI310STD

    The instruments are supplied in a transport case with a calibration certificate, a charger and a USB cable. ±10000 Pa pressure module - Ø6 mm Pitot tube- 2 x 1 m of silicone tube- 1 stainsless steel tip- ABS hygrometry probe- Hotwire probe- Ø100 mm vane probe

  • Multifunction anemometer - AMI310PRO

    The instruments are supplied in a transport case with a calibration certificate, a charger and a USB cable. ±500 Pa pressure module- Ø6 mm T Pitot tube - 2 x 1 m of silicone tube- 1 stainless steel tip- Stainless steel hygrometry probe - Telescopic hotwire probe- Ø100 mm telescopic vane probe

  • Multifunction anemometer - AMI310CLA

    The instruments are supplied in a transport case with a calibration certificate, a charger and a USB cable. + Ø70 mm vane probe, + ABS hygrometry probe + Hotwire probe

  • Multifunction anemometer - AMI 310 SRF

    The instruments are supplied in a transport case with a calibration certificate, a charger and a USB cable. - ±10000 Pa pressure module - Ø6 mm Pitot tube- 2 x 1 m of silicone tube- 1 stainsless steel tip - Wireless ABS hygrometry probe- Hotwire probe- Wireless Ø100 mm vane probe

  • Multifunction anemometer - AMI310PRF

    The instruments are supplied in a transport case with a calibration certificate, a charger and a USB cable. ±500 Pa pressure module- Ø6 mm T Pitot tube - 2 x 1 m of silicone tube- 1 stainless steel tip- Telescopic hotwire probe - Wireless stainless steel hygrometry probe- Wireless Ø100 mm vane probe

  • Multifunction anemometer - AMI310CRF

    The instruments are supplied in a transport case with a calibration certificate, a charger and a USB cable. - Wireless ABS hygrometry probe - Hotwire probe - Wireless Ø70 mm vane probe

  • Multifunction anemometer - AMI310SK

    The instruments are supplied in a transport case with a calibration certificate, a charger and a USB cable. ±500 Pa pressure module - Telescopic hotwire probe with gooseneck- Ø6 mm Pitot tube - 2 x 1 m of silicone tube (black & white)- 1 stainless steel tip

Description

  • Measurement of hygrometry, temperature, CO2, CO, air velocity, airflow, pressure, and tachometry (depending on model and probe)
  • Interchangeable modules
  • Expandable memory with micro-SD card
  • Two inputs for Pt100 temperature (from -200 to +600°C)
  • Up to six measurements simultaneously
  • Calibration certificate



MEASURE DETAILS

  • Units: °F, °C, % RH, Pa, rpm, m³/s, mph, kPa, ppm, g/m³, g/kg, m/s, bar, mbar, l/s, hPa, m³/h, tr/min, km/h, fpm, inWg, mmH2O, mmHg, daPa, cfm, psi
shadow

TECHNICAL DETAILS

  • Parameters

Air quality
Air velocity
Airflow
Differential pressure
Humidity
Tachometry
Temperature

  • Displays: 4-line display
  • IP Protection: IP 54
  • Battery life: 57 hours
  • Standards
    2011/65/EU RoHS II
    2012/19/EU WEEE
    2014/30/EU EMC
    2014/35/EU Low Voltage
  • Power supply: Lithium-Ion battery
  • Probe type: Wire & Wireless probe
  • Protective cover: Yes
  • Interchangeable module: Yes
shadow

shadow

Additional information

Version

AMI 310 SRF, AMI310, AMI310CLA, AMI310CRF, AMI310PRF, AMI310PRO, AMI310SK, AMI310STD
