Liquid Filled Pressure Gauges

Logo Basco

760 SERIES

General Purpose Pressure Gauges, BASCO 760 series, Liquid Filled, Accuracy 2% F.s., Grade B (3-2-3), 63mm (2-1/2″)

Modele

  • Liquid Filled Pressure Gauges - 761

    Lower mount

  • Liquid Filled Pressure Gauges - 764

    Center back mount

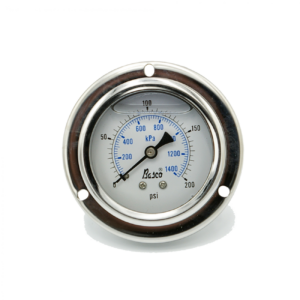

  • Liquid Filled Pressure Gauges - 766

    Center back mount with front flange

  • Liquid Filled Pressure Gauges - 767

    Center back mount with clampring

  • Liquid Filled Pressure Gauges - 767U

    Center back mount with U-Clamp

Description

761 / 764 / 766 / 767

  • Liquid filled, acrylic lens
  • Case: stainless steel, IP50
  • Bezel: stainless steel
  • Dial : aluminum, white background, black (psi) and blue (kPa) graduations
  • Scale: dual, psi and kPa
  • Resolution : ½ division
  • Bourdon Tube: brass (less than 600 psi), bronze (over 800 psi)
  • Connection: brass, ¼" NPT
  • Working and process temperatures : -10 to 50°C, less than 80%RH



Range codepsi scalekPa scale
401-30/0"Hg-100/0
406-30"Hg/0/30-100/0/200
407-30"Hg/0/60-100/0/400
410-30"Hg/0/160-100/0/1100
4170/150/100
4200/300/200
4220/600/400
4230/1000/700
4250/1600/1100
4260/2000/1400
4270/3000/2100
4280/4000/2800
4290/5000/3500
4300/6000/4000
4320/10000/7000
4330/15000/10000
4350/20000/14000
4360/30000/21000
4380/50000/35000
4390/60000/40000



Additional information

Modèle

761, 764, 766, 767, 767U
