TM210-R

Kimo’s TM 210-R can measure up to two temperatures.

SKU: TM210-R Categories: , , , , , Tags: ,
Datasheet User manual

Version

  • Temperature sensor-transmitter - TM210-BOB-R

    2-input with terminal block

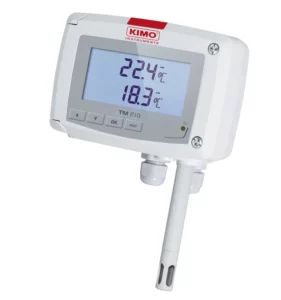

  • Temperature sensor-transmitter - TM210-BOS-R

    1 ambient output and 1 terminal block input

Description

  • Measuring ranges: Ambient model: -20 to +80°C and terminal block model: from -100 to +400°C
  • With  2-line 19-digits LCD display
  • Two relays
  • 0-5/10 V or 0/4-20 mA outputs
  • Quick and easy mounting with the 1/4 turn system with wall-mount plate
  • Adjustment certificate



MEASURE DETAILS

  • Units: °C, °F
shadow
TECHNICAL DETAILS
  • Parameters

Temperature

  • Displays: 2-line display
  • IP Protection: IP 65
  • Standards
    2011/65/EU RoHS II
    2012/19/EU WEEE
    2014/30/EU EMC
    2014/35/EU Low Voltage
  • Power supply: 24 Vac/Vdc
  • Outputs: 2 x 4-20 mA or 2 x 0-20 mA or 2 x 0-5 V or 2 x 0-10 V (4 wires)
  • Relay: 2 changeover relays 3 A / 230 V
  • Ethernet communication: No
  • Modbus network: No

Additional information

Version

TM210-BOB-R, TM210-BOS-R
