Description
Special Features of the Glycerin Pressure Gauge
- Shock and vibration resistance
- Robust design
- Approved for the shipbuilding industry
- Measuring ranges up to 0 ... 1000 bar
Applications of the Glycerin Pressure Gauge
- For use at measuring points with dynamic loads and vibrations
- For all gaseous and non-viscous or crystallizing liquids that do not attack copper alloys
- Hydraulics
- Compressors, shipbuilding
Description of the Glycerin Pressure Gauge

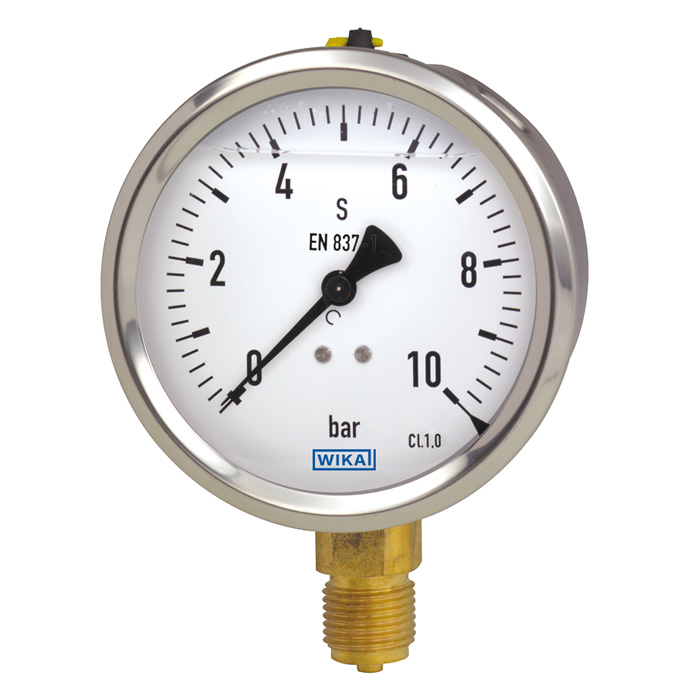

The liquid-filled Bourdon Tube Pressure Gauge Type 213.53 is constructed with a stainless steel housing and parts in contact with the Copper alloy fluid.
The 213.53 pressure gauge meets the requirements of the international industry standard EN 837-1 for Bourdon Tube Pressure Gauges.
The measuring element and movement are effectively protected by filling the case with a damping liquid. This makes these instruments particularly suitable for measuring points with high dynamic stresses, such as highly cyclical applications or those with vibrations.
The 213.53 pressure gauge is available in diameters of 50, 63, and 100; it has an IP65 protection rating. With an accuracy of up to Class 1.0, this device is suitable for a wide variety of applications.
For mounting in control panels, the rear-mounted pressure gauges can be equipped with a front flange or a mounting bracket.
