Multiprobe Anemometer and Micromanometer

Multiprobe Anemometer and Micromanometer - Image 3

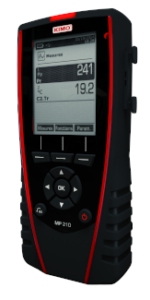

MP210

Kimo’s MP 210 micromanometer measures pressure, air velocity, airflow, temperature, tachometry, gas leak and carbon monoxide (up to 6 simultaneous measurements).

SKU: MP210 Categories: Air, Air conditioning, Air velocity test instruments, Anemometers, CO, Differential Pressure, Flow, Indoor Air Quality, Micromanometers, Tachymetry, Temperature Tag: Digital Micromanometer

Datasheet User manual

Modele

Multiprobe Anemometer and Micromanometer - MP210
Supplied w/o probe or module, with 1 cable with mini-DIN connector, for measuring probes (coming in option), Lithium Ion rechargeable battery with USB / mains adapter cable, 2x1m of silicone tube 4x7, one stainless steel tube diam. 6mm length 100mm, transport case.
Multiprobe Anemometer and Micromanometer - MP210P
Supplied with pressure module (-500 to 500 Pa / 2 to 28 m/s), with 1 Thermocouple K/J/T/S/N channel, with 1 cable with mini-DIN connector, for measuring probes (coming in option), 2 x 1m silicone tube (black and white), stainless steel tube Ø 6 mm, length 100mm, Lithium Ion rechargeable battery with USB / mains adapter cable, calibration certificate and transport case.
Multiprobe Anemometer and Micromanometer - MP210M
Supplied with pressure module (-2500 to 2500 Pa / 2 to 60 m/s), with 1 Thermocouple K/J/T/S/N channel, with 1 cable with mini-DIN connector, for measuring probes (coming in option), 2 x 1m silicone tube (black and white), stainless steel tube Ø 6 mm, length 100mm, Lithium Ion rechargeable battery with USB / mains adapter cable, transport case and calibration certificate.
Multiprobe Anemometer and Micromanometer - MP210G
Supplied with pressure module (-500 to 500 mbar / 9 to 100 m/s), with 1 Thermocouple K/J/T/S/N channel, with 1 cable with mini-DIN connector, for measuring probes (coming in option), 2x1m silicone tube 4x6, 2x1m of silicone tube 4x7, stainless steel tube Ø 6 mm, length 100mm, Lithium Ion rechargeable battery with USB / mains adapter cable, calibration certificate and transport case.
Multiprobe Anemometer and Micromanometer - MP210H
Supplied with pressure module (-500 to 500 mbar / 9 to 100 m/s), with 1 Thermocouple K/J/T/S/N channel, with 1 cable with mini-DIN connector, for measuring probes (coming in option), 2x1m silicone tube 4x6, 2x1m of silicone tube 4x7, stainless steel tube Ø 6 mm, length 100mm, Lithium Ion rechargeable battery with USB / mains adapter cable, calibration certificate and transport case.
Multiprobe Anemometer and Micromanometer - MP210HP
Supplied with pressure module (-2000 to 2000 mbar / 18 to 100 m/s) with 1 Thermocouple K/J/T/S/N channel, with 1 cable with mini-DIN connector, for measuring probes (coming in option), Lithium Ion rechargeable battery with USB / mains adapter cable, 2x1m of clear tube 4x6, 2x1m of silicone tube 4x7, one staineless steel tube diam. 6mm length 100mm, calibration certificate and transport case.

Description
Additional information

Description

Measurement of pressure, air velocity, and airflow
Interchangeable modules
Two inputs for Pt100 temperature (from -200 to +600°C)
Up to 6 measurements simultaneously
Large graphic display
Calibration certificate

MEASUREMENT DETAILS

Units: °F, °C, m³/s, mph, m/s, l/s, m³/h, km/h, fpm, cfm

TECHNICAL DETAILS

Parameters

Air velocity
Airflow
Temperature
4-line display
IP Protection IP 54
Battery life 59 hours
Power supply Lithium-Ion battery
Probe type Wire & Wireless probe
With Integrated Protective cover
Interchangeable module

Accessories

Module and probes for 210 series

Type S Pitot tubes with integrated thermocouple

Additional information

Modèle	MP210, MP210G, MP210H, MP210HP, MP210M, MP210P
