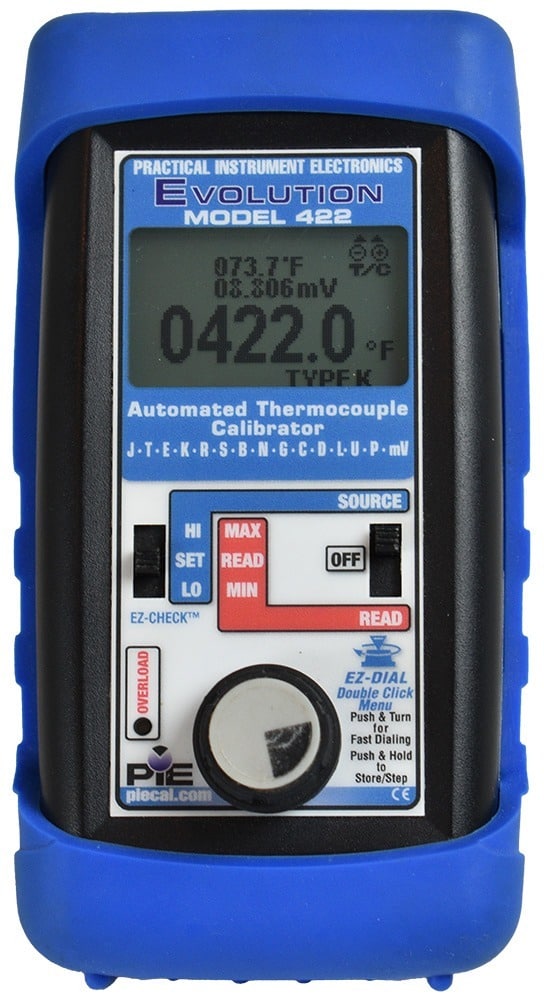

Thermocouple Calibrator

Description

Optimal accuracy for a portable device

• Reads and acquires fourteen temperature types and readings, plus mV
  J, K, T, E, R, S, B, N, G, C, D, L (J DIN), U (T DIN) and P (Platinum), -13,000 to 80,000 mV
• Reliable calibration
  Resolution of 0.1 °F and °C; Accuracy of 0.2 °C
  Cold Junction Sensor: Accuracy of 0.05 °CVerification of Heat Treatment Uniformity Control Recorders and System Accuracy Testing
  The PIE 422 meets the requirements of an AMS 2750 field test instrument after certification by an accredited laboratory.Faster Calibrations
  Instant selection of three outputs with the EZ-CHECK switch

  Easy search for trigger points with the two-speed EZ-DIAL knob and auto-adjustment
  Easy change of thermocouple type and scale

  Double-click to select thermocouple type and °F or °C unit
  Easy-to-read display

  Activate backlight for easy reading even in dark areas of the plant
  Use in the plant, field, or workshop

• Includes a rubber sleeve and mV test leads
  Discreet switches are shock-resistant

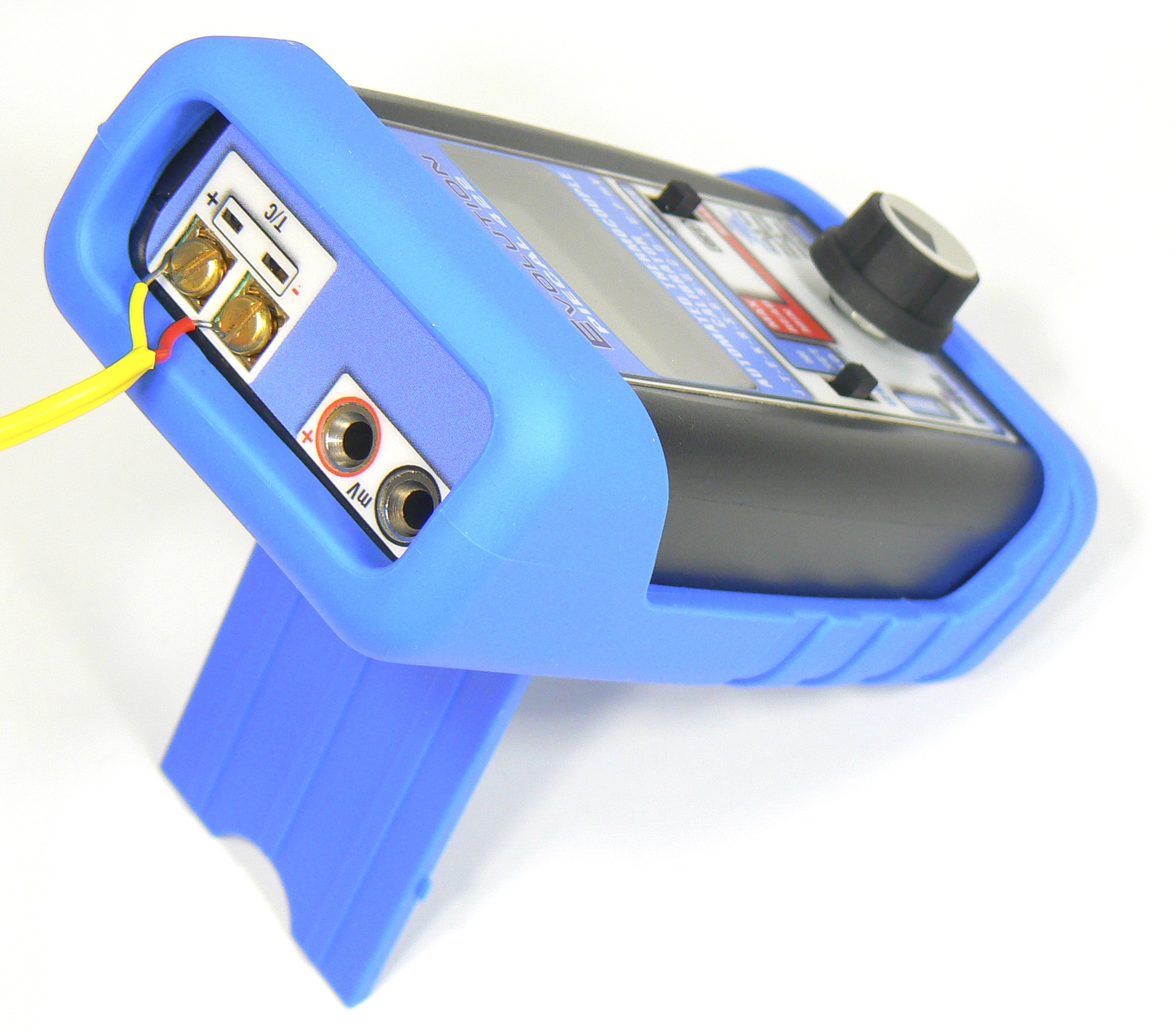

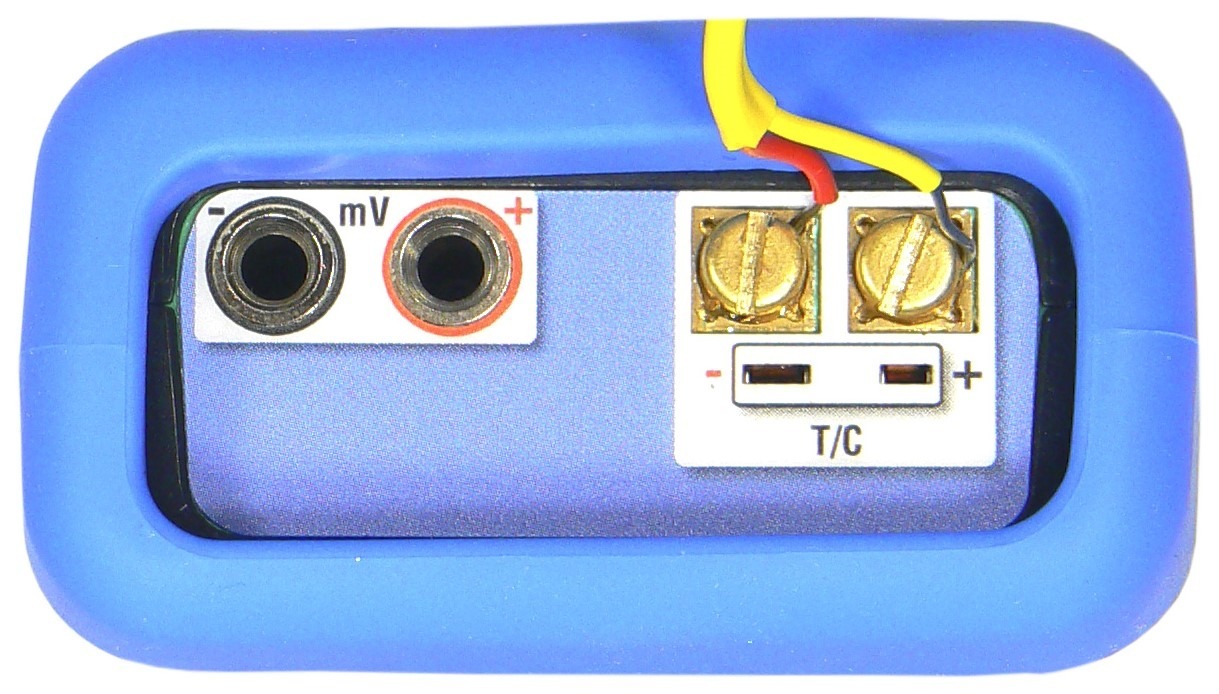

  Brass screws for thermocouple leads and mini-thermocouple plug
• Simple, tool-free battery change
  Four low-cost AA batteries
• Cold junction temperature and output check
  Secondary display of compensated millivolt setting and cold junction temperature

Optional Accessories

• Mini-thermocouple lead and plug: J, T, E, K (020-0202); B, R/S, K (020-0203)

Supplied with:

• A rubber sleeve, a hands-free carrying case, test leads, and a NIST certificate.
